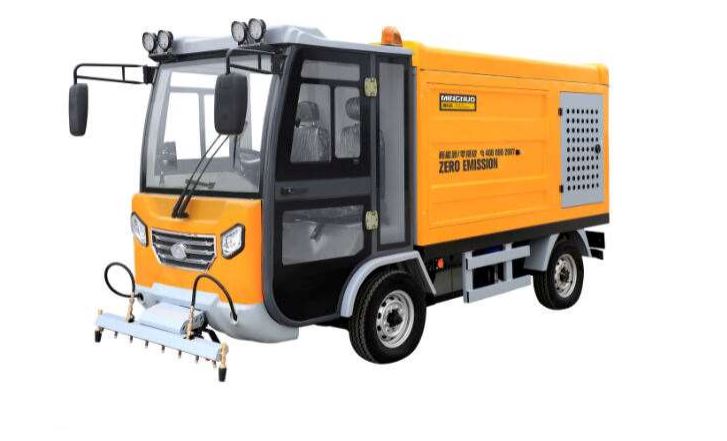

Wash Vehicle – HD-H51

Capture

Utilizing AR Water Pump from Italy, this vehicle is designed for road maintenance and cleaning, effectively removing small ads, guardrails, and blind spots along road curbs in urban areas.

Advantages

  • Robust and Durable Body: The vehicle features a non-load-bearing body structure with strong rigidity and anti-distortion capabilities. The chassis is made of special steel plates with an overall riveted design for high strength and load-bearing capacity.
  • Reinforced Axles & Suspension: Equipped with reinforced axles and a strong front/rear integral bridge suspension for enhanced bearing capacity.
  • Advanced Control System: The vehicle's control system is managed by a single-chip microcomputer with safety features such as anti-electromagnetic interference, start delay, reverse deceleration, electronic anti-slip, and error reporting. Vacuum-assisted brakes provide excellent safety.
  • Versatile Cleaning Equipment: Includes a front cleaning device, road line cleaning tool, hedging device, and manual spray gun for efficient operation.
  • Front Cleaning Device: Features high-pressure water flow with electric control for up/down rotation (12°) and left/right deflection (18°), forming a complete cleaning plane.
  • Cylindrical Single-Point Cleaning: Fully electric-controlled, allowing the driver to operate the device for precise movement in all directions from the cab.
  • Manual High-Pressure Spray Gun: Equipped with a 15m high-pressure hose, enabling largearea cleaning of stains and street advertisements efficiently and effortlessly

Specifications

NOItem NameUnitSpecification
1Dimensions (L/W/H)mm4550×1640×2150
2Number of passengersstaff2
3Curb Weightkg1860
4Water tank capacityL1500
5Top speedkm/h25
6Mileagekm80~100
7Treadmm2150
8Minimum off spacingmm200
9Smallest braking distancem4
10Motor Powerv/kw72/7.5
Fuel
1Combustion engine models Honda
2High-pressure pump type ZD2812
3Maximum working pressurebar150
4Maximum flowL/H1800
5Maximum grade ability%20
Pure Electric
1Maximum working pressurebar250
2Maximum flowL/H900
3Maximum grade ability%25

Applications

Can effectively clean the “psoriasis” in the city, small advertisements, road boards, guardrail, road teeth dead corners and other ground oil.

Suitable for Multiple Scenerios

Advantages

  • The body is featured with non-bearing body structure, which is strong in rigidity and distortion resistant.
  • It is featured with reinforced axle and two rear tires, and the front and rear sspensions are the overall bridge style with strong carrying capacity.
  • The cleaning devices consist of the devices including front cleaning device, cylindrical singlepoint (two point) cleaning device, manual spray gun device and so on
  • When the front cleaning device is working, the high-pressure water flow can form a complete cleaning plane. The electronic control rotates 12º vertically and swings 18º horizontally
  • The operation of columnar single point cleaning device is fully electric controlled, and the driver can complete the operation in the cab.
  • The full direction operations of the up, down, left and right are available.
  • The rear end is equipped with manual high-pressure spray gun, and high-end 12-meter-long roll coil supporting water cannon. It is simple and convenient for operation, which both saves time and manpower. With the large operating range, it can be configured with a variety of specialized nozzles to clean the centralized strains and ad lets along the street.

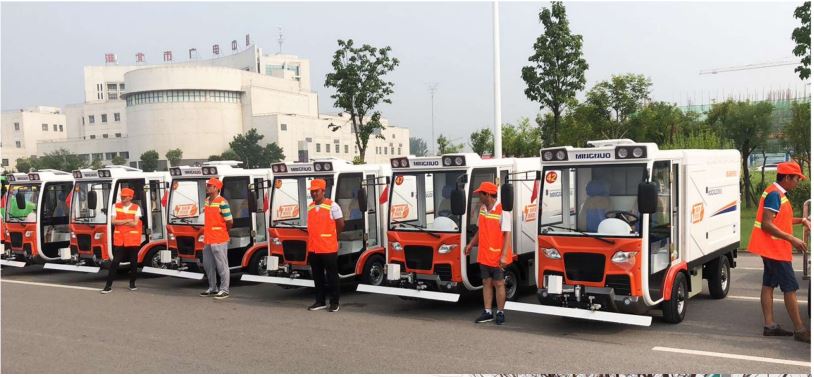

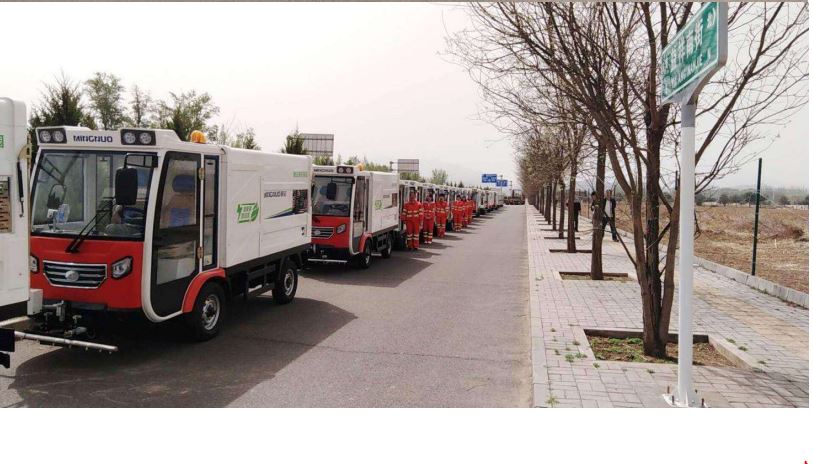

Case Studies

Product Detail
