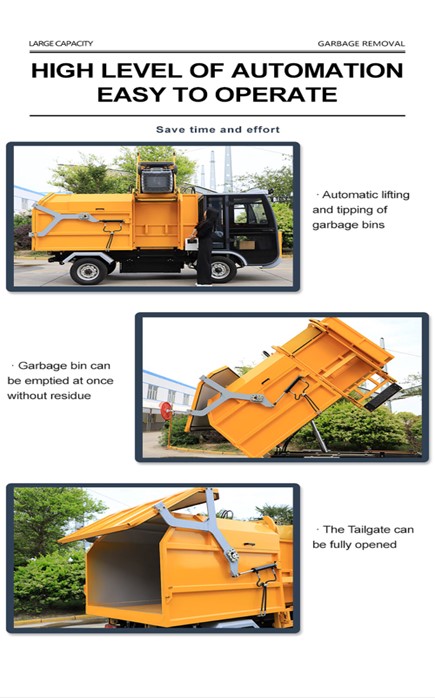

The H92 is a fully electric side-load garbage vehicle, combining a dustbin turnover mechanism with a garbage loading and dumping system. It is specifically designed for efficient waste transportation in environmental sanitation and cleaning operations, offering an eco-friendly solution for waste management.
| No. | ITEM | UNIT | SPECIFICATION |
| 1 | Dimension | mm | 4260×1500×2180 |
| 2 | Passenger | staff/人 | 2 |
| 3 | Max Speed | km/h | 25 |
| 4 | Min Turning Radius | m | 5 |
| 5 | Endurance | km | 80-100 |
| 6 | Braking ability | m | 4 |
| 7 | Wheel track | mm | 1200 |
| 8 | Wheel base | mm | 2150 |
| 9 | Ground Clearance | mm | 200 |
| 10 | Climbing | % | 25 |
| 11 | Driving Motor | kW | 7.5 |
| 12 | Oil Pump | kW | 1.3 |
| 13 | Battery Group | V | 72 |
| 14 | Trash Hopper | m³ | 4 |
| 15 | Trash Can | L | 120/240 |
| 16 | Machine weight | kg | 2180 |
| 17 | Rated load | kg | 1500 |
