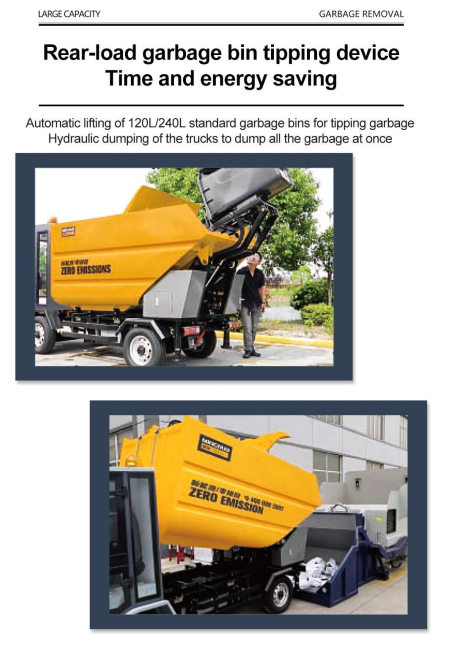

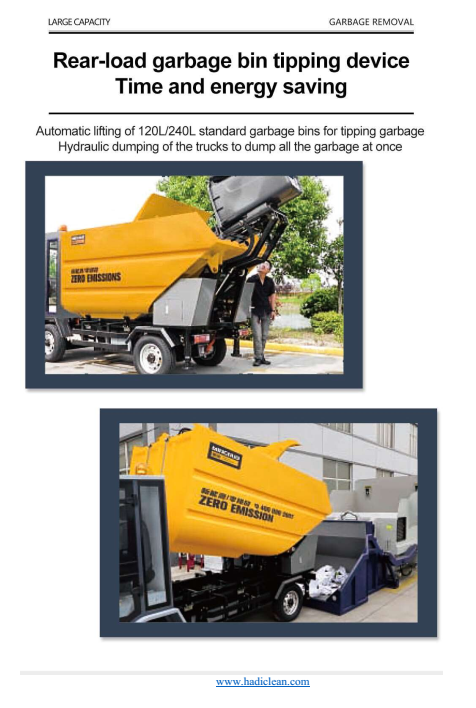

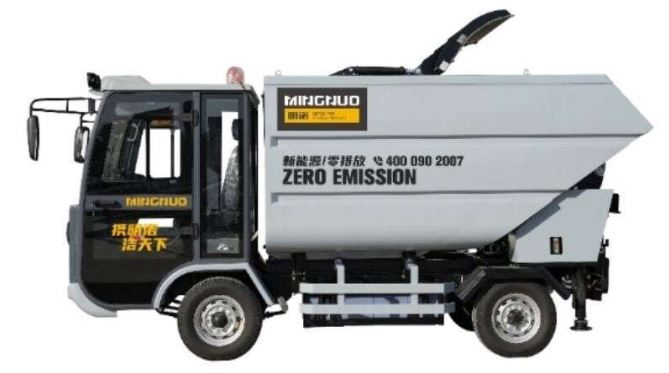

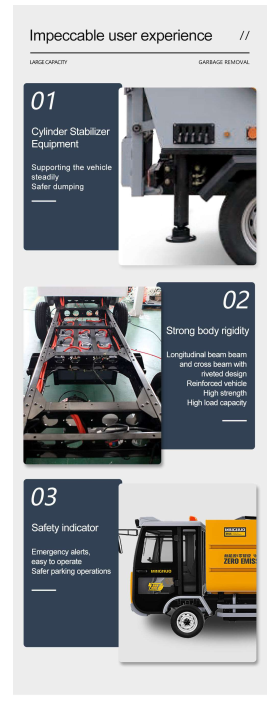

Utilizing a riveted automotive chassis design, this vehicle integrates garbage bin loader, compactor and dumper in one. It
can load 120L/240L standard garbage bin. With a rear garbage bin loader, it requires smaller working space and can
navigate through narrow alleys.
| No. | Item | Unit | Specification |
|---|---|---|---|
| 1 | Dimension | mm | 4200×1480×2100 |
| 2 | Passenger staff/人 | 2 | |
| 3 | Max Speed | km/h | 25 |
| 4 | Min Turning Radius | m | 5 |
| 5 | Endurance | km | 80-100 |
| 6 | Braking ability | m | 4 |
| 7 | Front / Rear tread | mm | 1200 / 1200 |
| 8 | Wheel base | mm | 2150 |
| 9 | Tyre | 175R13LT | |
| 10 | Ground Clearance | mm | 170 |
| 11 | Climbing | % | 20 |
| 12 | Driving Motor | kw | 7.5 |
| 13 | Oil Pump | kw | 1.3 |
| www.hadiclean.com | |||
| 14 | Battery Group | v | 72 |
| 15 | Trash Hopper | m³ | 3.6 |
| 16 | Trash Can | L | 120 / 240 |
| 17 | Weight with batteries | kg | 2150 |
| 18 | Rated load | kg | 1500 |
