Shop Details

Dabbab – HD82

1

H82 DABBAB is equipped with hydraulic lifting tailgate for efficiently loading and unloading garbage bins. It can carry eight
240L garbage bins. The tailgate is national certificated.

Advantages

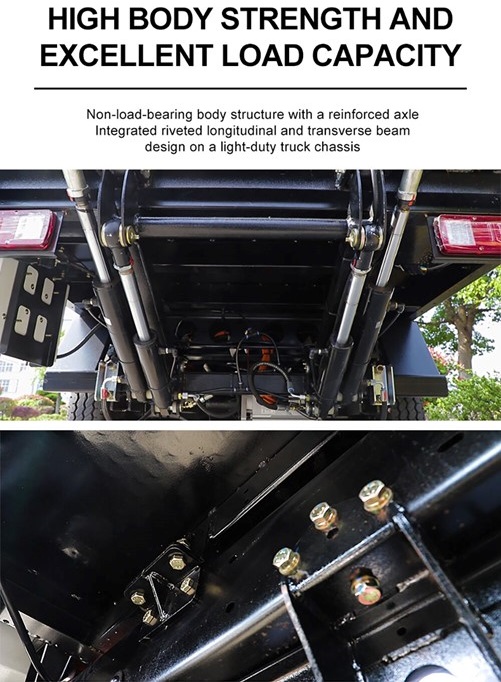

  • Heavy-Duty Chassis: The chassis is designed with longitudinal and transverse beams, incorporating car-grade and truckspecial steel materials, providing exceptional strength and load-bearing capacity.
  • Reinforced Suspension System: The vehicle utilizes a reinforced car bridge with an integral bridge-type front and rear
    suspension frame, offering superior bearing capacity.

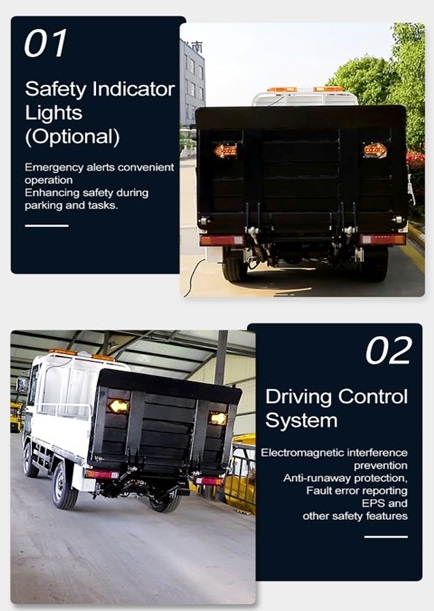

  • Advanced Vehicle Control: The control system is powered by a single-chip microcomputer, featuring a resistance-type accelerator and comprehensive safety functions such as anti-electromagnetic interference, startup delay, reverse deceleration, electronic anti-slip slope, energy feedback, fault error reporting, CAN communication, and EPS. The vacuumassisted brake system ensures enhanced safety.

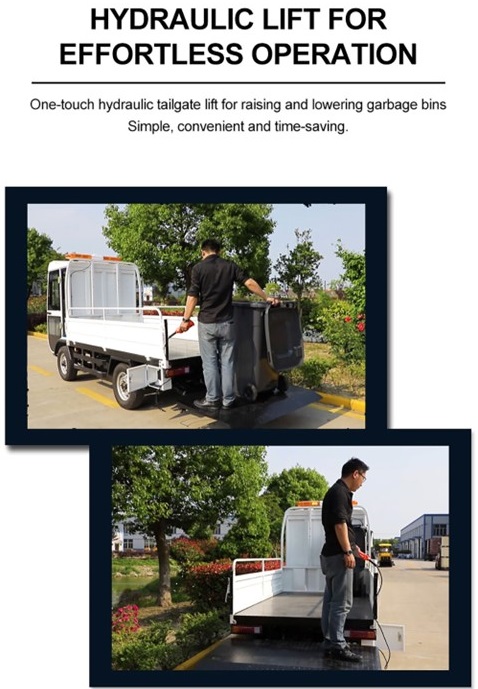

  • Hydraulic Tailgate: Equipped with a fully automated hydraulic tailgate, the system easily controls the lifting and dumping of waste hoppers, whether full or empty, for smooth and efficient operation.
  • High-Quality Windshield and Tires: The windshield is made from double-curved, lined adhesive material for added
    durability and clarity, while the vehicle is fitted with radial vacuum tires for improved stability and performance.

Specifications

NO Item Name Unit Specification
1 Dimensions (L/W/H) mm 4400×1480×2100
2 Cargo bed mm 2850×1340×600
3 Number of passengers staff 2
4 Curb Weight kg 1730
5 Rated load kg 1200
6 Gross Vehicle Weight Rating (GVWR) T 3
7 Top speed km/h ≤25
8 Minimum turning radius m 6
9 Mileage km 80-100
10 Wheel track mm 1200
11 Wheelbase mm 2150
12 Minimum off spacing mm 200
13 Maximum Gradeability % 25
14 Smallest braking distance m ≤4
15 Motor v/kw 72/7.5
16 Battery pack AH 210 (Free maintenance batteries)
Hydraulic tail plate technology parameters
1 Hydraulic Turn mm 50/30～89
Lift mm 50/39～106
2 Power kw 2
3 System pressure Mpa 12
4 Maximum pressure Mpa 16
5 Movement speed S 5
6 Weight capacity kg 400

Product Detail

Download PDF Play Video
